| パラメータ名 | パラメータ値 |
| Maximum Output Level | 19dBm (1KHz, THD=0.5%) |
| Residual Noise | -75dB |
| 信号対雑音比 | 71dB |
| Equivalent Noise Source Input Voltage | -12dBm |
| Headphone Output Power | 40mW (1KHz, THD=0.5%, 200Ω) |
| Equalization / Low Frequency: | 80Hz ±15dB |
| Equalization / Mid Frequency: | 2.5KHz ±15dB |
| Equalization / High Frequency: | 12KHz ±15dB |
| Gain Control / Mono | -55dB to 0dB |
| Gain Control / Stereo | -10dB to 0dB |
| 周波数特性 | 20Hz to 20KHz (+1dB, -3dB) |
| Total Harmonic Distortion + Noise | ≤0.05% (1KHz, 0.775V) |
| Rated Power | 45W |
| Power Supply Voltage | AC220V-240V / 50Hz-60Hz |
| Device Dimensions WxDxH | 560mm x 400mm x 90mm |
| 重量 | 7kg |
ミキシングテーブル

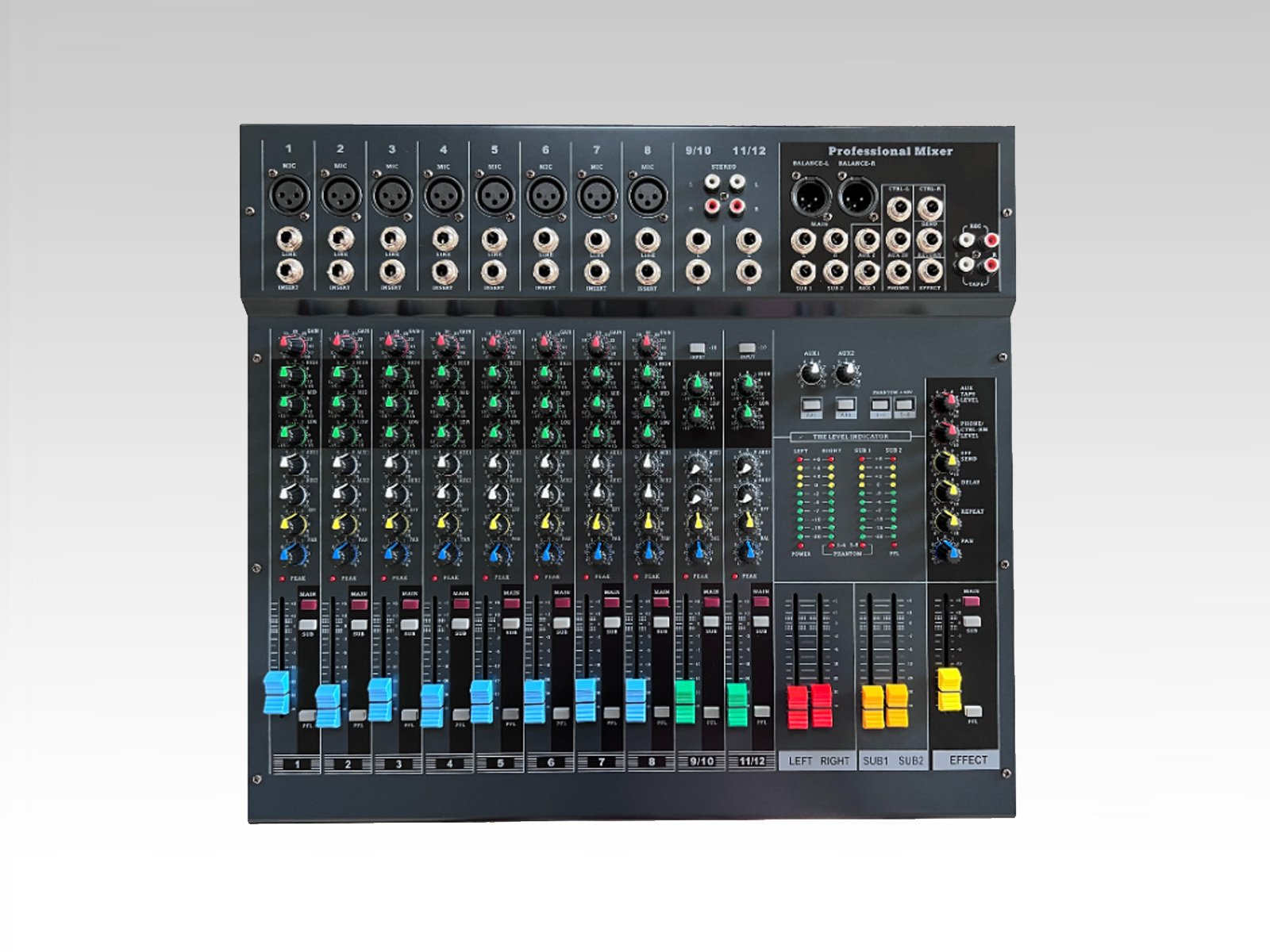

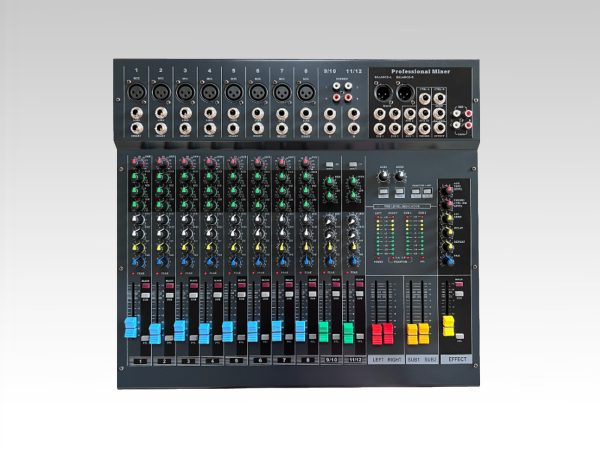

16チャンネル・ミキシング・コンソール
The 16-channel mixing console features 12 mono inputs and 12 microphone inputs, along with 2 stereo inputs.
- Microphone Power: The microphones are controlled by a group of phantom 48V switches.
- Phantom Power Supply: Equipped with a 48V phantom power supply.
- Mono Input Amplifiers: Each mono input is equipped with high-quality microphone amplifiers.
- Auxiliary Outputs: Includes 2 group outputs and 2 auxiliary outputs.
- Built-in Effects: Comes with a built-in professional digital reverb effect.
- Equalizers: Each channel has a 3-band parametric equalizer for high, mid, and low frequencies.
- Monitor Level Display: Features a monitor level display.
- Power Design: Designed with an external low-noise power supply.
- Recording I/O: Equipped with recording input and output capabilities.
関連商品
-

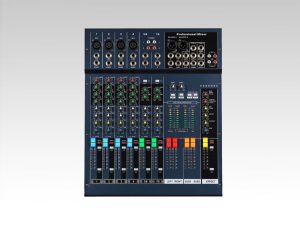

8チャンネル・ミキシング・コンソール
ミキシングテーブル -

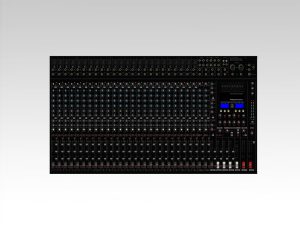

32チャンネル・ミキシング・コンソール
